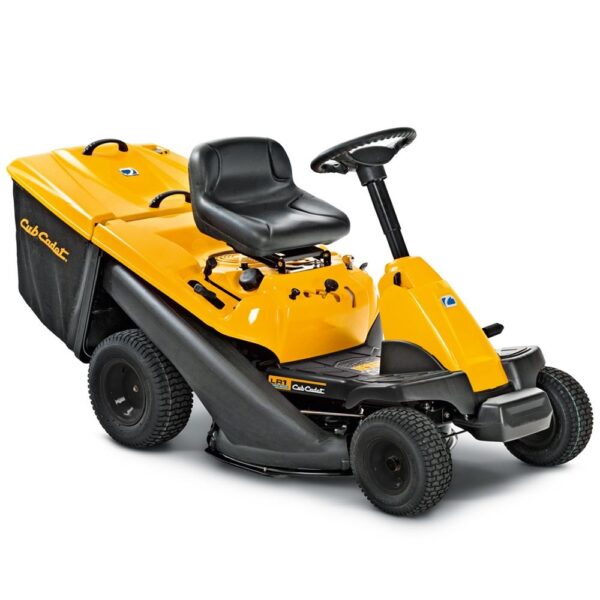

Cub Cadet LR1MR76 Compact Rear-Collect Ride-On Mower with Transmatic Drive
£2,384
Overview
| Brand | Cub Cadet |
|---|---|
| Model | 13A726HD603 |
| Engine | Cub Cadet |
| Engine Cylinders | Single |
| Displacement | 382cc |
| Net Rated Power Output | 7.6kW / 2800rpm |
| Battery | 12V , 135CCA, AGM |
| Battery Charger | Optional accessory: 196-967-678 |
| Fuel Tank Capacity | 4.9L |
| Lubrication | Fully pressurised with automotive-style oil pump spin-on-oil filter |
| Start Method | Electric |
| Transmission Type | Transmatic |
| Drive Method | Foot pedal control with lever for manual pre-selection |
| Speeds | 6 forward + 6 reverse, shift-on-the-go |
| Cruise Control | No |
| Mow In Reverse | Standard |
| Productivity | 2500m²/h |
| Cutting System | 3-in-1 functionality: bagging, discharge and mulching |
| Width of Cut | 30″ / 76cm |
| Turning Circle | 46cm / 18″ |
| Blades | 1 |
| Blade Engagement | Manual lever control |
| Minimum Cutting Height | 38mm |
| Maximum Cutting Height | 95mm |
| Cutting Height Adjustment | 5 positions |
| Anti-Scalp Deck Wheels | No |
| Deck Wash Nozzle | No |
| Grass Collector | Plastic hard top |
| Collector Capacity | 200L |
| Fill Level Indicator | Standard |
| Tipping Mechanism | Bag lever over 2 fixed grips |
| Mulch Plug | Optional |
| Deflector | Optional |
| Seat | Comfort medium back, tool-less adjustment |
| Steering Wheel | Standard |
| Front Axle | Steel |
| Front Bumper | Standard |
| Headlights | No |
| Wheels – Front | 13″ x 5″ |
| Wheels – Rear | 16″ x 6.5″ |
| Wheel Bearings | Sleeve bearings |
| Tow Bar | Optional hitch kit: 196-398-000 |
| Safety Features | Neutral start, operator presence, brake pedal lock |
| Vibration Level Data | Vibration level body/K-factor: 1.0m/s² / 0.5m/s² Vibration level hand/arm / K-factor: 5.0m/s² / 1.5m/s² |
| Sound and Noise Data | LpA: 88dB, LwA: 98dB, LwAg: 100dB |
| Assembled Dimensions | L: 225cm x W: 86cm x H: 112cm approx |
| Weight | 144.0kg |
| Global Trade Item Number | 4008423892284 |
| Warranty | 3 year conditional manufacturer |
